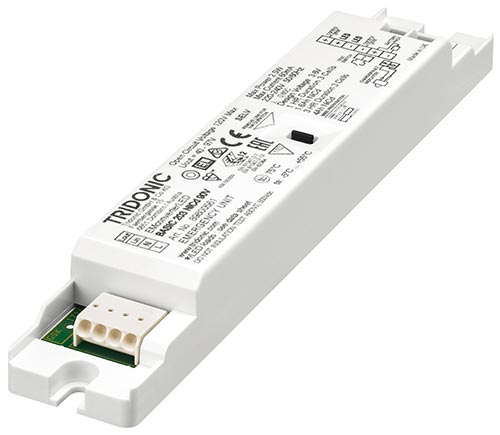

TRIDONIC EM Converter LED BASIC MH/LiFePO4 50V

TRIDONIC EM ConverterLED BASIC MH/LiFePO4 50V
QCD (Qatar Civil Defense) Approved LED Emergency Battery Kit

Product description

• Self contained emergency lighting LED Driver for manual testing
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal life-time up to 100,000 h
• 5-year guarantee

Properties

• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
• 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole connector
• Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)

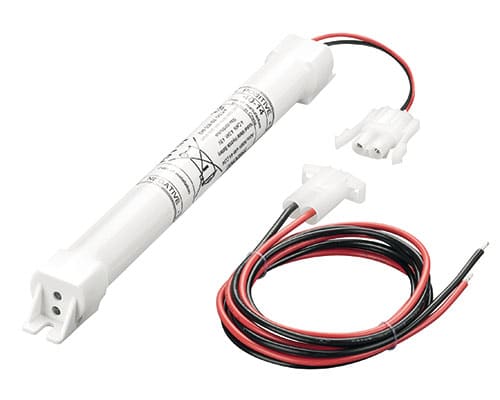

Batteries

• High-temperature cells
• NiMH or LiFePO4 batteries
• LA or 18650 cells
• 4-year design life for NiMH batteries
• 1-year guarantee for NiMH batteries
• 4 – 8 years design life for LiFePO4 batteries
• 3-year guarantee for LiFePO4 batteries
• For battery compatibility refer to datasheet, battery selection
