DLA G1 ready2apply SNC

ر.ق0.00

  • Downlight module suitable for direct installation in ceilings (ready2apply)
  • Module with integrated electronics and heat sink
  • Light engine operating with 230 V AC
  • Typ. luminous flux category: 1,000/2,000 lm
  • High system efficacy up to 90 lm/W at tp = 65 °C

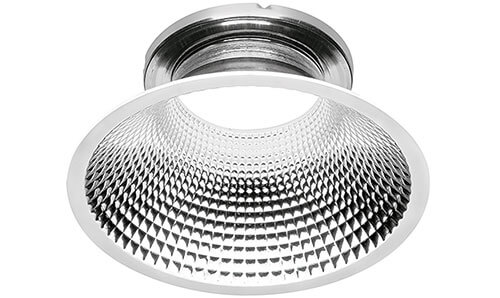

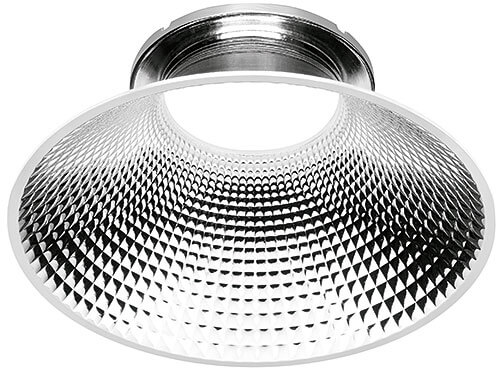

  • Optional reflector solution with 60° and 90°
  • Small colour tolerance (MacAdam 4)
  • Nominal life-time of 30,000 h (L70/B50)
  • 3-year guarantee

Approval Marks:





Luminaire Types:





Compare
1000 lm DLA G1 100mm 1000lm 830 R SNC 28001090 DLA G1 100mm 1000lm 840 R SNC 28001091 DLA G1 100mm 1000lm 865 R SNC 87500479

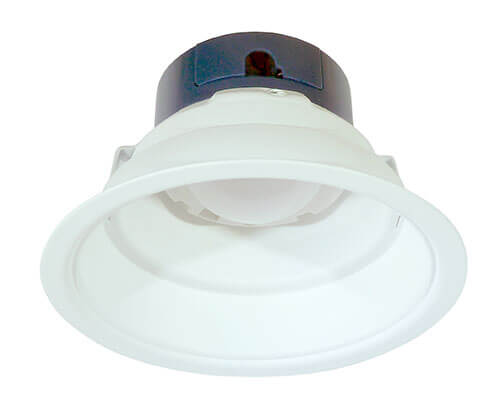

Heat Sink & No Beam Angle DLA G1 100mm 1000lm 830 R SH SNC 28001264 DLA G1 100mm 1000lm 840 R SH SNC 28001265
2000 lm DLA G1 150mm 2000lm 830 R SNC 28001092 DLA G1 150mm 2000lm 840 R SNC 28001093 DLA G1 150mm 2000lm 865 R SNC 87500480

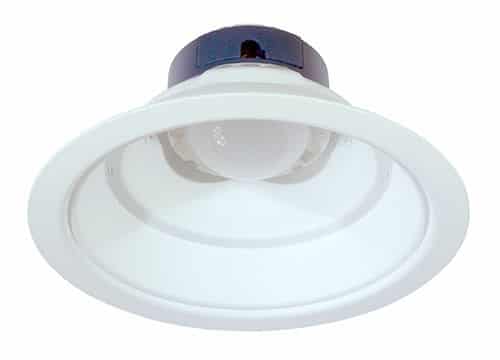

Heat Sink & No Beam Angle DLA G1 150mm 2000lm 830 R SH SNC 28001266 DLA G1 150mm 2000lm 840 R SH SNC 28001267
Brand

Tridonic
Rated Supply Voltage

220 Ð 240 V
Luminous flux

1000 lm, 2000 lm
Heat Sink

Yes, No
Beam Angle

Yes, No
Article Number

28001090, 28001091, 28001092, 28001093, 28001264, 28001265, 28001266, 28001267, 87500479, 87500480
input-voltage-ac

Mains Frequency

50 / 60 Hz
typ

thd

flicker

Ambient temperature ta

-20 … +40 ¡C
typ-tp-temperature

Download

Tridonic DLA G1 SNC Datasheet
