- Downlight module suitable for direct installation in ceilings (ready2apply)
- Module with integrated electronics and heat sink
- Light engine operating with 230 V AC
- Typ. luminous flux category: 1,000/2,000 lm
- High system efficacy up to 90 lm/W at tp = 65 °C
- Optional reflector solution with 60° and 90°
- Small colour tolerance (MacAdam 4)
- Nominal life-time of 30,000 h (L70/B50)
- 3-year guarantee
- LED replacement for downlight with compact fluorescent lamps
- Complete ready2apply solution comprising module, driver, reflector and trim ring
- Tool-free assembly, simple as push and rotate
- Spring clip pre-assembled
- Ripple current 5 % and UGR19 (specific model only) makes office installation possible
- Fit for ceiling cutout 100, 150 and 200 mm
- Typ. luminous flux category: 1,000/2,000/3,000 lm
- Approved emergency solution with EM converterLED
- High system efficacy up to 111 lm/W
- Optional reflector solution with 60° and 90°
- Small colour tolerance (MacAdam 4)
- Nominal life-time of 50,000 h (L70/B50)
- 5-year guarantee
- Edgelit panel for direct recessed mount and surface or suspended mount with accessories
- Two luminous flux range variants 2,800 or 3,800 lm
- For suspended ceiling grid measure of 600 and 625 mm
- LED system solution with outstanding system efficacy up to 101 lm/W
- Efficacy of the module up to 120 lm/W
- High colour rendering index CRI > 80
- Small colour tolerance (MacAdam 4) (1)
- UGR < 19
- Small luminous flux tolerances
- Colour temperatures 3,000, 4,000 and 6,500 K
- Diffusor material standard article: PS, diffusor material TPA article: PC
- Lightguide material: PMMA
- Long life-time: 50,000 hours
- 5-year guarantee

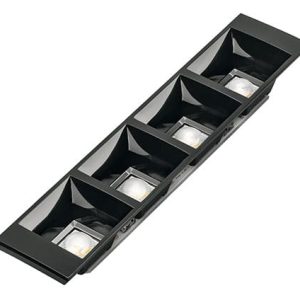

DAISY LEDil LLE Advanced 24mm LV DAISY ADV1 (LEDiL)
ر.ق0.00DAISY LEDil LLE Advanced Module 24mm LV with Dimension 24x140mm, 24x280mm & 24x560mm Product description Ideal for linear luminaires 4 terminals for parallel wiring SELV module – the single module has a forward voltage < 60 V Push terminals for quick and simple wiring of LED module to LED module Design for LEDiL DAISY 4x1,...
DATA 2
ر.ق0.00DIVERSIFIED MONITORING OF EMERGENCY LIGHTING
The system monitors the operation of Evacuation lighting fittings installed in large public buildings. It determines the condition of fittings by performing function and autonomy tests, which are configured by the user. The system is highly intuitive to use thanks to its touch-based navigation and user-friendly interface.
DATA-S Plus
ر.ق0.00
Main parameters of the system |
|
| Maximum number of emergency fittings in the system | 3024 |
| Maximum number of communication channels | 12 |
| Maximum number of emergency fittings/channel | 63 |
| Maximum number of emergency fittings/channel (using signal repeater) | 252 |
| Maximum length of the communication cable | 1000 m |
DLA G1 ready2apply SNC
ر.ق0.00
Luminaire Types:
DLA G2 System
ر.ق0.00
Luminaire Types:

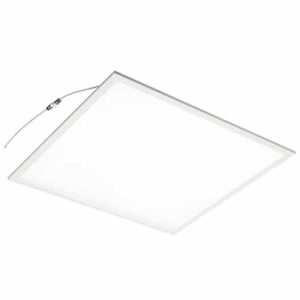

ELA G1 SNC LED Panel
ر.ق0.00
Luminaire Types:
iTech IP65 “C” Series – Escape Route Wide Beam
ر.ق0.00C Series With Emerald-A Lens for Corridors application
iTech IP65 “F” – Narrow Beam Emergency Light
ر.ق0.00F Series with Flare-Mini lens for challenging ceiling heights.
iTech IP65 “W” – Wall Mounted Emergency Light
ر.ق0.00W Series With Strada FT Optic for asymmetrical illumination – wall mounted application
