Tridonic net4more Sensor 5DPI 14 un:c

ر.ق0.00

  • Component of the net4more system
  • With ambient light dependent control and presence detection
  • Can be remote controlled
  • Lighting control and presence detection can be deactivated
  • Individual adjustment of the parameters with configuration software
  • Multi-master compatible: Multiple control modules are possible in a net4more system
  • Power supply via un:c bus
  • net4more articles are part of the net4more toolbox consisting of hardware and software and can be ordered with the system via your local sales team
  • 5-year guarantee
Compare

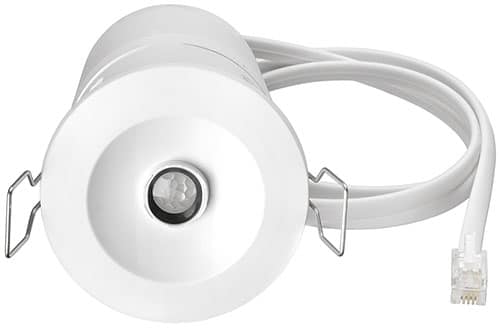

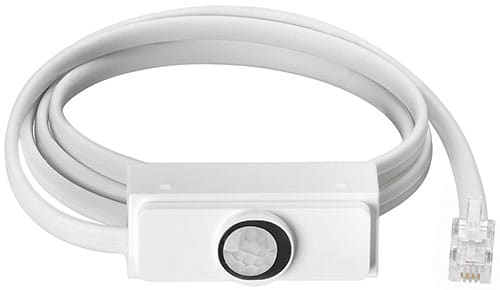

The Tridonic net4more Sensor is the ideal addition to the net4more product series as it offers daylight-dependent lighting control and presence detection. The sensor is available in 2 versions to be inbuilt with the luminaire & to be remotely mounted in the ceiling. It is suitable for the following applications:

  • Luminaire built-in
  • Individual offices
  • Open-plan offices
  • Training / presentation rooms
  • Corridors, passageways and garages

The following functions are available:

  • Daylight regulation
  • Presence detection

Specification

Supply via un:c bus
Max. current draw from un:c 40 mA
Typ. current draw from un:c 20 mA
Operating temperature 0 … +60 °C
tc point 65 °C
Storage temperature ts -20 … +65 °C
Max. mounting height 5 m
Type of protection IP20

Download

Tridonic net4more Sensor Datasheet
