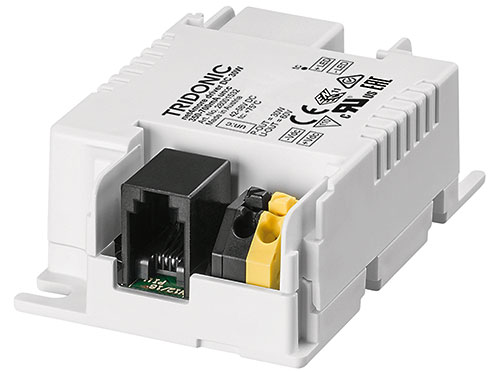

Tridonic net4more driver DC 30W 350-700mA un:c

Description

Product description

• un:c interface dimmable
• Adjustable output current between 350 and 700 mA
• Output voltage range 20 – 42 V
• Up to 93 % efficiency
• Dimming range 5 to 100 %
• Max. tc point temperature 75 °C
• 5-year guarantee
• net4more articles are part of the net4more toolbox consisting of hardware and software and can be ordered with the system via your local sales team

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20

Interfaces

• un:c – RJ10 (4P4C)
• Terminal blocks: 45° push terminals

Functions

• Adjustable output current
• Protective features (overtemperature, short-circuit, no-load)

Benefits

• Allows integration into IP connected lighting system
• Small dimensions for miniaturization of luminaires
• Application-oriented operating window

Typical applications

• LED Driver for wired and wireless linear/area luminaires in office applications, in combination with dedicated net4more comMOD
