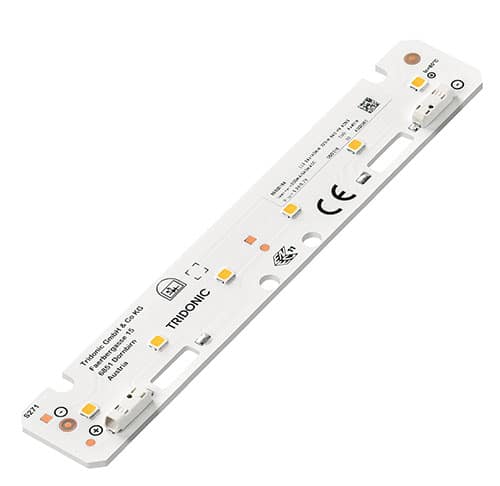

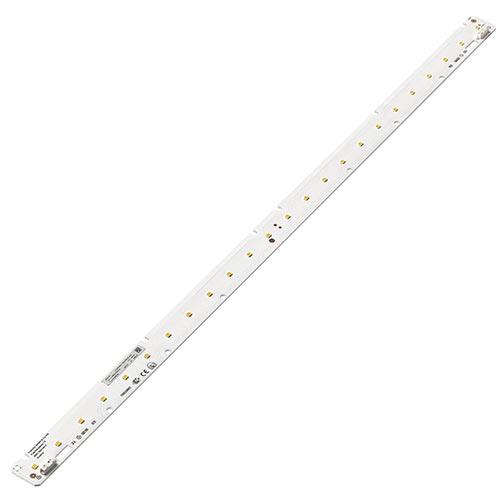

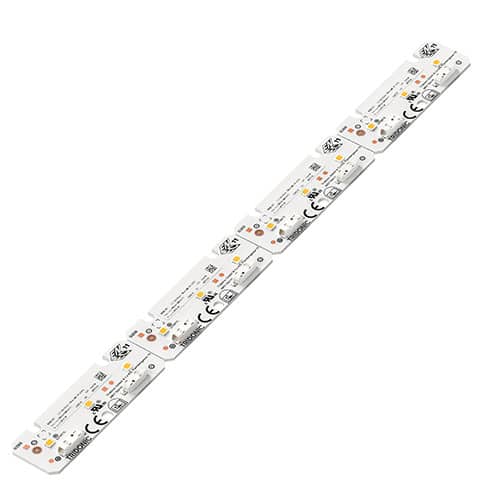

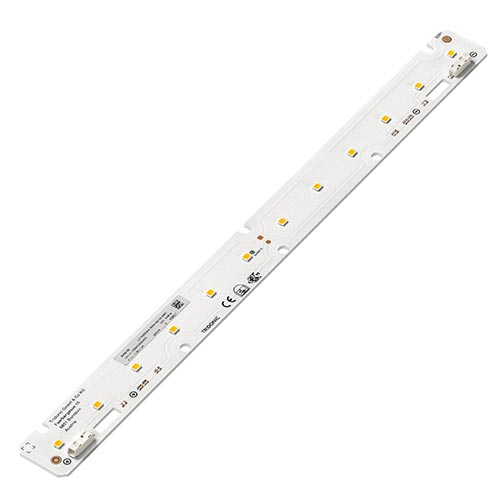

Tridonic Module LLE Advanced 24mm 650lm/1250lm HV ADV5

ر.ق0.00

Module LLE 24mm 650lm/1250lm HV ADV5 Linear LED Module with Dimensions 24x70 mm, 24x140mm, 24x280mm and 24x560mm Product description Ideal for linear and panel lights 2 terminals for serial w...< a href="#" id="short_description-readmore"> read more
Compare

Module LLE 24mm 650lm/1250lm HV ADV5 Linear LED Module with Dimensions 24×70 mm, 24x140mm, 24x280mm and 24x560mm

Product description

  • Ideal for linear and panel lights
  • 2 terminals for serial wiring
  • Perfectly uniform light, even if several LED modules are used together in a line
  • Push terminals for quick and simple wiring of LED module to LED module
  • Broad portfolio from extruded lenses and covers available
  • Long life-time up to 72,000 hours
  • 5-year guarantee

Optical properties

  • Colour temperatures 2,700, 3,000, 3,500, 4,000, 5,000 and 6,500 K
  • Typ. luminous flux 160, 325, 650 and 1,300 lm
  • Efficacy of the module up to 207 lm/W
  • High colour rendering index CRI > 80
  • High colour consistency (MacAdam 3)
  • Small luminous flux tolerances

Mechanical properties

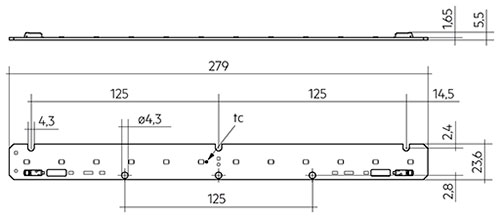

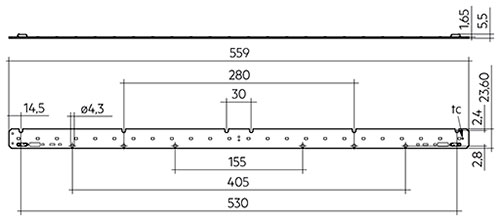

  • Module dimension 24 x 70 mm, 24 x 140 mm, 24 x 280 mm and 24 x 560 mm (ZHAGA compliant)
  • Simple installation via clips or screws

System solution

  • LED system solution with outstanding system efficacy up to 186 lm/W, consisting of linear LED module and dimmable LED Driver LCA 50W 100 – 400mA lp PRE

Specification

Beam characteristic 120°
Ambient temperature range -40 … +65 °C
tp rated 50 °C
tc 85 °C
Irated 300 mA
Imax 540 mA
Max. permissible LF current ripple 595 mA
Max. permissible peak current 900 mA / max. 10 ms
Max. working voltage for insulation 440 V
Insulation test voltage 1.88 kV
CTI of the printed circuit board ≥ 600
ESD classification Severity level 4
Risk group (IEC 62471) RG0
Classification acc. to IEC 62031 Built-in
Type of protection IP00
Life-time up to 72,000 h
Gurantee 5 Year(s)

Technical Data

Module LLE 24mm 650lm HV ADV5 Module LLE 24mm 1250lm HV ADV5
Type Article number Colour temp (K) Type Article number Colour temp (K)
LLE 24x70mm 160lm 830 HV ADV5 QTY4 89603180 3,000 K LLE 24x70mm 325lm 830 HV ADV5 QTY4 89603203 3,000 K
LLE 24x70mm 160lm 840 HV ADV5 QTY4 89603181 4,000 K LLE 24x70mm 325lm 840 HV ADV5 QTY4 89603204 4,000 K
LLE 24x140mm 325lm 830 HV ADV5 89603183 3,000 K LLE 24x70mm 325lm 850 HV ADV5 QTY4 28003379 5,000 K
LLE 24X140mm 325lm 835 HV ADV5 28003388 3,500 K LLE 24x70mm 325lm 865 HV ADV5 QTY4 28002946 6,500 K
LLE 24x140mm 325lm 840 HV ADV5 89603184 4,000 K LLE 24x140mm 650lm 830 HV ADV5 89603206 3,000 K
LLE 24x140mm 325lm 865 HV ADV5 89603186 6,500 K LLE 24x140mm 650lm 835 HV ADV5 28003404 3,500 K
LLE 24x280mm 650lm 827 HV ADV5 89603187 2,700 K LLE 24x140mm 650lm 840 HV ADV5 89603207 4,000 K
LLE 24x280mm 650lm 830 HV ADV5 89603188 3,000 K LLE 24x280mm 1250lm 827 HV ADV5 89603210 2,700 K
LLE 24X280mm 650lm 835 HV ADV5 28003395 3,500 K LLE 24x280mm 1250lm 830 HV ADV5 89603211 3,000 K
LLE 24x280mm 650lm 840 HV ADV5 89603189 4,000 K LLE 24x280mm 1250lm 835 HV ADV5 28003405 3,500 K
LLE 24x280mm 650lm 850 HV ADV5 89603190 5,000 K LLE 24x280mm 1250lm 840 HV ADV5 89603212 4,000 K
LLE 24x280mm 650lm 865 HV ADV5 89603191 6,500 K LLE 24x280mm 1250lm 850 HV ADV5 89603213 5,000 K
LLE 24x560mm 1300lm 827 HV ADV5 89603192 2,700 K LLE 24x280mm 1250lm 865 HV ADV5 89603214 6,500 K
LLE 24x560mm 1300lm 830 HV ADV5 89603193 3,000 K LLE 24x560mm 2400lm 827 HV ADV5 89603215 2,700 K
LLE 24x560mm 1300lm 835 HV ADV5 28003397 3,500 K LLE 24x560mm 2400lm 830 HV ADV5 89603216 3,000 K
LLE 24x560mm 1300lm 840 HV ADV5 89603194 4,000 K LLE 24x560mm 2400lm 835 HV ADV5 28003262 3,500 K
LLE 24x560mm 1300lm 850 HV ADV5 89603195 5,000 K LLE 24x560mm 2400lm 840 HV ADV5 89603217 4,000 K
LLE 24x560mm 1300lm 865 HV ADV5 89603196 6,500 K LLE 24x560mm 2400lm 850 HV ADV5 89603218 5,000 K
LLE 24x140mm 325lm 927 HV ADV5 28003027 2,700 K LLE 24x560mm 2400lm 865 HV ADV5 89603219 6,500 K
LLE 24x140mm 325lm 930 HV ADV5 28003028 3,000 K LLE 24x140mm 650lm 930 HV ADV5 89603227 3,000 K
LLE 24X140mm 325lm 935 HV ADV5 28003319 3,500 K LLE 24x140mm 650lm 935 HV ADV5 28003411 3,500 K
LLE 24x140mm 325lm 940 HV ADV5 28003029 4,000 K LLE 24x140mm 650lm 940 HV ADV5 89603228 4,000 K
LLE 24x280mm 650lm 927 HV ADV5 28003030 2,700 K LLE 24x280mm 1250lm 930 HV ADV5 89603230 3,000 K
LLE 24x280mm 650lm 930 HV ADV5 28003031 3,000 K LLE 24x280mm 1250lm 935 HV ADV5 28003412 3,500 K
LLE 24X280mm 650lm 935 HV ADV5 28003320 3,500 K LLE 24x280mm 1250lm 940 HV ADV5 89603231 4,000 K
LLE 24x280mm 650lm 940 HV ADV5 28003032 4,000 K LLE 24x560mm 2400lm 930 HV ADV5 89603233 3,000 K
LLE 24x560mm 1300lm 927 HV ADV5 28003033 2,700 K LLE 24x560mm 2400lm 935 HV ADV5 28003413 3,500 K
LLE 24x560mm 1300lm 930 HV ADV5 28003034 3,000 K LLE 24x560mm 2400lm 940 HV ADV5 89603234 4,000 K
LLE 24x560mm 1300lm 935 HV ADV5 28003402 3,500 K
LLE 24x560mm 1300lm 940 HV ADV5 28003035 4,000 K

Download

Module LLE 24mm 650lm HV ADV5 Datasheet

Module LLE 24mm 650lm CRI90 HV ADV5 Datasheet

Module LLE 24mm 1250lm HV ADV5 Datasheet

Module LLE 24mm 1250lm CRI90 HV ADV5 Datasheet
