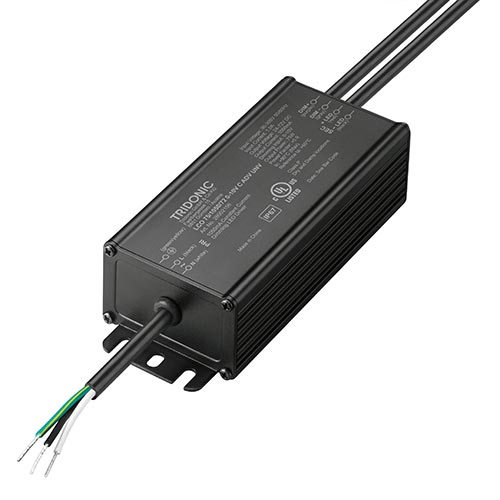

Tridonic LED Driver LCO fixC L SNC2 IP67 for Outdoor applications

Product description

• Independent fixed output LED Driver
• Constant current LED Driver
• Output current 500, 700, 1,050 or 1,400 mA
• Up to 92 % efficiency
• Ambient temperature range of -40 … +60 °C
• Max. casing temperature tc of 90 °C
• Nominal life-time up to 100,000 h
• 5-year guarantee

Housing properties

• Casing: metal, black
• Type of protection IP67

Interfaces

• Connection: cable 300 mm

Functions

• Protective features (overtemperature, short-circuit, overload, no-load)

Benefits

• Wide voltage input 100 – 240 V
• Best energy savings due to low stand-by losses and high efficiency
• Suitable for mains voltage peaks (burst/surge) up to 6 kV
• Double or reinforced insulation
• High number of drivers on 16 A (B) automatic circuit breakers
• Extended vibration damping
• The LED Driver is designed for a life-time stated above under reference conditions and with a failure probability of less than 10 %
• The wide product range offers common currents for a cost effective luminaire manufacturing

Typical applications

• For parking lot, high bay and street applications
• For linear/area lighting in industry applications
