Tridonic LC flexC SR ADV LED Drivers

ر.ق0.00

LC flexC SR ADV Independent Fixed Output LED Driver Product description Independent fixed output LED Driver For luminaires of protection class I and protection class II For luminaires wi...< a href="#" id="short_description-readmore"> read more
Compare

LC flexC SR ADV Independent Fixed Output LED Driver

Product description

  • Independent fixed output LED Driver
  • For luminaires of protection class I and protection class II
  • For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
  • Temperature protection as per EN 61347-2-13 C5e
  • Selectable output current between 350, 500 and 700 mA
  • Up to 85 % efficiency
  • Nominal life-time up to 50,000 h
  • 5-year guarantee

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20

Interfaces

  • Terminal blocks: 0° screw terminals

Functions

  • Overload protection
  • Short-circuit protection
  • No-load protection
  • Over temperature protection
  • Burst protection voltage 1 kV
  • Burst protection voltage 1 kV (L to N)
  • Surge protection voltage 2 kV (L/N to earth)

Typical applications

  • For spot light and down light in retail and hospitality application
  • For panel light and area light in office and education application

Specification

Rated supply voltage 220 – 240 V
AC voltage range 198 – 264 V
Max. input current (at 230 V, 50 Hz, full load) 0.31 A
Mains frequency 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Typ. efficiency (at 230 V, 50 Hz, full load) (1) 90.50%
λ (at 230 V, 50 Hz, full load) (1) 0.95
Output current tolerance (2) (3) ± 10 %
Max. output current peak (4) ≤ output current + 20 %
Max. output voltage (U-OUT) 60 V
THD (at 230 V, 50 Hz, full load) < 10 %
Output LF current ripple (< 120 Hz) ± 5 %
Starting time (at 230 V, 50 Hz, full load) ≤ 0.5 s
Turn off time (at 230 V, 50 Hz, full load) ≤ 0.5 s
Hold on time at power failure (output) 0 s
Ambient temperature ta (at life-time 50,000 h) 40 °C
Storage temperature ts -40 … +80 °C
Life-time up to 50,000 h
Dimensions L x W x H 159.4 x 82 x 34 mm

Technical Data

Type Article Number Output Current Maximum Rated Power

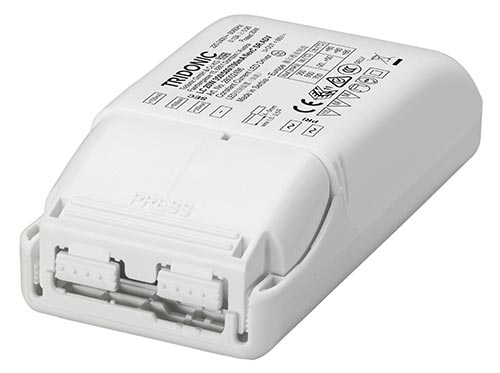

Driver LC 20W 350/500/700mA flexC SR ADV
LC 20W 350/500/700mA flexC SR ADV 28002496 350/500/750mA 20 W
Driver LC 35W 350/500mA flexC SR ADV
LC 35W 350/500mA flexC SR ADV 28002495 350/500mA 35 W
Driver LC 35W 700/800/1050mA flexC SR ADV
LC 35W 700/800/1050mA flexC SR ADV 28002494 700/800/1050mA 35 W
Driver LC 42W 700/900/1050mA flexC SR ADV
LC 42W 700/900/1050mA flexC SR ADV 28002497 700/900/1050mA 42 W

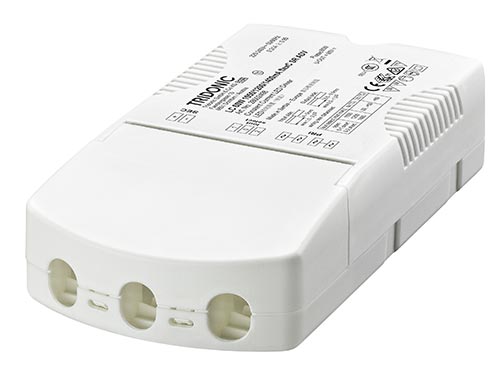

Driver LC 60W 1050/1200/1400mA flexC SR ADV
LC 60W 1050/1200/1400mA flexC SR ADV 28002498 1050/1200/1400mA 60 W

Download

Driver LC 20W 350/500/700mA flexC SR ADV Datasheet

Driver LC 35W 350/500mA flexC SR ADV Datasheet

Driver LC 35W 700/800/1050mA flexC SR ADV Datasheet

Driver LC 42W 700/900/1050mA flexC SR ADV Datasheet

Driver LC 60W 1050/1200/1400mA flexC SR ADV Datasheet
