Tridonic LC 24V IP67 L EXC UNV

ر.ق0.00

Product description

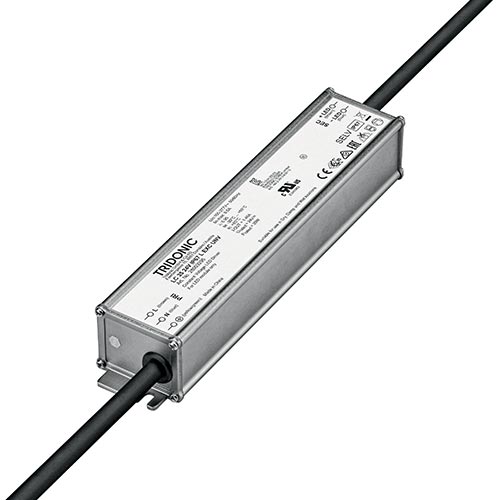

Tridonic LC 24V IP67 L EXC UNV Constant Voltage LED Driver

Rated supply voltage	100 – 277 V
AC voltage range	90 – 305 V
Mains frequency	50 / 60 Hz
Rated current (at 120 V, 60 Hz, full load)	0.5 A
Rated current (at 230 V, 50 Hz, full load)	0.5 A
Rated current (at 277 V, 60 Hz, full load)	0.2 A
Leakage current (at 120 V, 60 Hz, full load)	< 750 µA
Leakage current (at 230 V, 50 Hz, full load)	< 750 µA
Leakage current (at 277 V, 60 Hz, full load)	< 750 µA
Efficiency (at 120 V 60 Hz, full load)	> 85 %
Efficiency (at 230 V, 50 Hz, full load)	> 85 %
Efficiency (at 277 V 60 Hz, full load)	> 85 %
λ (at 120 V, 60 Hz, full load)	0.98
λ (at 230 V, 50 Hz, full load)	0.95
λ (at 277 V, 60 Hz, full load)	0.9C
Output voltage tolerance	22.8 – 25.2 V
Max. output power	35 W
Output LF current ripple (< 120 Hz)	± 5 %
Starting time (output)	≤ 500 ms
Hold on time at power failure (output)	≤ 1 ms
Mains burst capability	1 kV
Mains surge capability (between L – N)	4 kV
Mains surge capability (between L/N – PE)	6 kV
Surge voltage at output side (against PE)	< 500 V
Max. casing temperature tc	85 °C
Ambient temperature ta (at life-time 50,000 h)	50 °C
Storage temperature ts	-40 … +85 °C
Type of protection	IP67
Life-time	up to 50,000 h
Gurantee	5 Year(s)

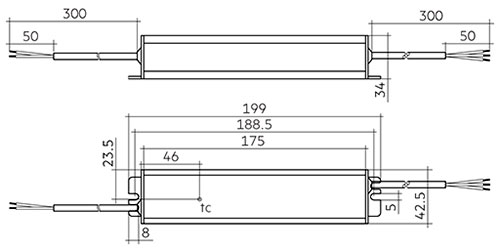

Dimensions L x W x H	175 x 31 x 42.5 mm
Hole spacing D	188.5 mm
