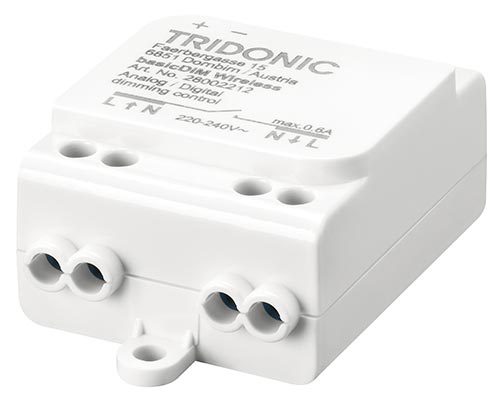

Tridonic basicDIM Wireless Module

ر.ق0.00

Tridonic basicDIM Wireless Module is the wireless communication medium which enables the control of the Luminaire with a Android / iOS smart device.The basicDIM Wireless module integrated into the lum...< a href="#" id="short_description-readmore"> read more
Compare

Description

  • Wireless controllable with a Android / iOS smart device
  • No need for an external gateway device
  • Forms automatically a wireless communication network with up to 250 nodes
  • Small form factor for luminaire installation
  • Configurable analog / digital output
  • Analog output: 0 – 10 V / 1 – 10 V sinking / sourcing
  • Digital output: Standalone DALI (compatible)
  • Easily implemented RGB and colour temperature controls
  • Controllable switched mains output
  • Device firmware can be updated over-the-air
  • 5-year guarantee

Specification

Rated supply voltage 220 – 240 V
Mains frequency 50 / 60 Hz
Radio transceiver operating frequencies 2.4 – 2.483 GHz
Max. output power radio transceiver + 4 dBm
Bus voltage DC DALI output 12 V
Shortcircuit current DALI output 7 mA
Max. DALI wiring length 1 m at 1 mm² cross section
Ambient temperature ta -20 … +50 °C
Max. casing temperature tc 70 °C
Storage temperature ts -25 … +75 °C
Dimensions L x W x H 56.5 x 35.8 x 22.3 mm
Type of protection IP20

Download

Tridonic basicDIM Wireless Module Datasheet
