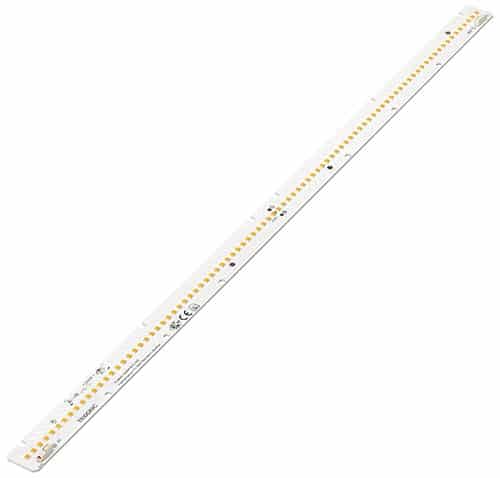

Module LLE Excite 24mm 2000lm EXC LLE TRIDONIC

Product description:

• Ideal for linear and panel lights in industrial applications
• Reliable, high life-time solution and extended temperature range in combination with the INDUSTRY control gears
• Perfectly uniform light, even if several LED modules are used together in a line
• Push terminals for simple wiring
• Broad portfolio from extruded lenses and covers available
• Long life-time
• 8-year guarantee

Optical properties

• Colour temperatures 3,000, 4,000, 5,000 and 6,500 K
• Luminous flux range from 2,230 – 6,300 lm
• Efficacy of the module up to 154 lm/W
• High colour rendering index CRI > 80
• Small colour tolerance (MacAdam 3)

Mechanical properties

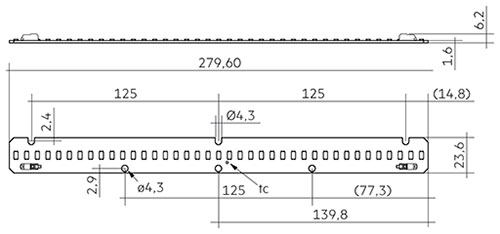

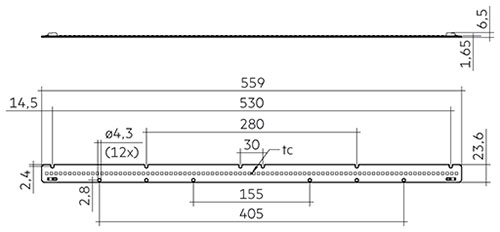

• Module dimension 24 x 280 mm and 24 x 560 mm (ZHAGA compliant)
• Simple installation via clips or screws

System solution

• LED system solution with outstanding system efficacy up to 131 lm/W
