LLE FLEX G2 8mm ADV

ر.ق0.00

Tridonic Module LLE FLEX G2 8mm ADV 24V Constant Voltage LED Strip

  • Dimmable 24 V constant voltage strip (SELV)
  • Ideal for various decorative lighting applications: facade accent lighting, ceiling integration, cove lighting and for aluminum extrusions

Approval Marks:





Luminaire Types:





Compare

Product description

  • Dimmable 24 V Tridonic constant voltage LED flextape (SELV)
  • Ideal for various decorative lighting applications: facade accent lighting, ceiling integration, cove lighting and for aluminium extrusions
  • Long life-time: 50,000 hours
  • 5-year guarantee

Optical properties

  • Colour temperature 2,700, 3,000, 4,000 and 6,500 K with SDCM 3
  • Luminous flux range of 600, 1,200 and 1,800 lm/m
  • Efficacy of the module up to 141 lm/W at tp = 65 °C
  • Pitch distance of 1.4 cm enables high light homogeneity

Mechanical properties

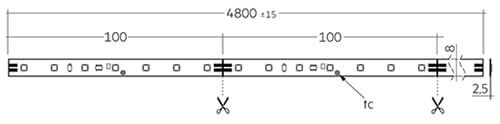

  • High design freedom due to 10 cm cut-options
  • Self-adhesive 3M tape at the backside for simple mounting on different surfaces

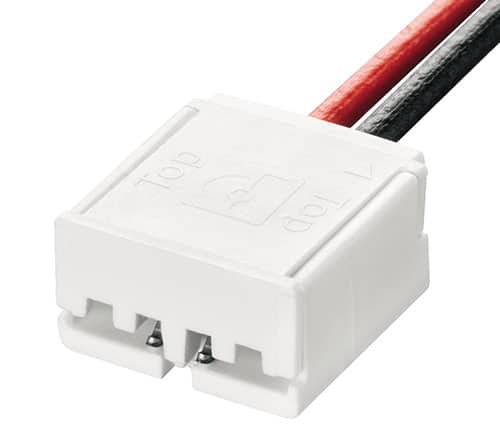

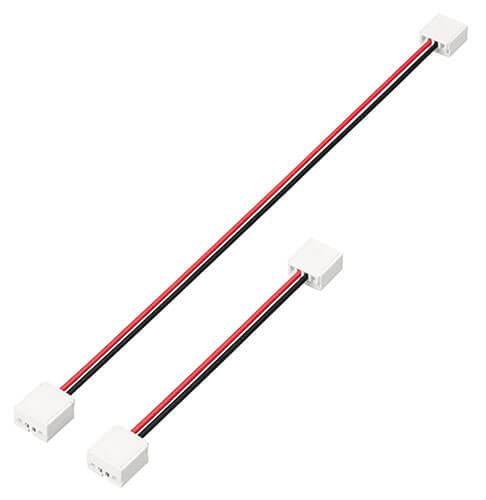

  • PCB to PCB and wire to PCB connectors for toolless handling and connection

System solution

  • System solution in combination with constant voltage LED Driver (fixed output and dimmable)

Features & Benefits

  • Luminous flux range of 600, 1,200 and 1,800 lm/m
  • Colour temperature 2,700, 3,000, 4,000 and 6,500 K with SDCM 3
  • Efficacy of the module up to 141 lm/W at tp = 65 °C
  • High design freedom due to 10 cm cut-options
  • Pitch distance of 1.4 cm enables high light homogeneity
  • Self-adhesive 3M tape at the backside for simple mounting on different surfaces
  • PCB to PCB and wire to PCB connectors for toolless handling and connection
  • Long life-time up to 50,000 hours
  • 5-year guarantee
  • System solution in combination with Tridonic constant voltage LED Driver (fixed output and dimmable)

Specification

Type  Article number Color Temp. (K) Luminous Flux (lm) Typ. power
consumption(W)
4,800 mm reel
LLE FLEX G2 8×4800 4W-600lm/m 827 ADV 28001832 2,700 K 600 lm/m 3.8 W/m
LLE FLEX G2 8×4800 4W-600lm/m 830 ADV 28001900 3,000 K 600 lm/m 3.8 W/m
LLE FLEX G2 8×4800 4W-600lm/m 840 ADV 28001901 4,000 K 600 lm/m 3.8 W/m
LLE FLEX G2 8×4800 8W-1200lm/m 827 ADV 28001833 2,700 K 1,200 lm/m 7.8 W/m
LLE FLEX G2 8×4800 7W-1200lm/m 840 ADV 28001904 4,000 K 1,200 lm/m 7.4 W/m
LLE FLEX G2 8×4800 7W-1200lm/m 865 ADV 28001905 6,500 K 1,200 lm/m 7.4 W/m
LLE FLEX G2 8×4800 12W-1800lm/m 830 ADV 28001906 3,000 K 1,800 lm/m 11.8 W/m
LLE FLEX G2 8×4800 11W-1800lm/m 840 ADV 28001907 4,000 K 1,800 lm/m 11.3 W/m
LLE FLEX G2 8×4800 11W-1800lm/m 865 ADV 28001908 6,500 K 1,800 lm/m 11.3 W/m

Download

Tridonic LLE Flex G2 Datasheet
