LCU 48V 150W DC-STR FO SR

ر.ق0.00

Approval Marks:

Approval-Marks-lcu-48v-150w-dc-str-fo-sr

Luminaire Types:

Luminaire-Types

Compare

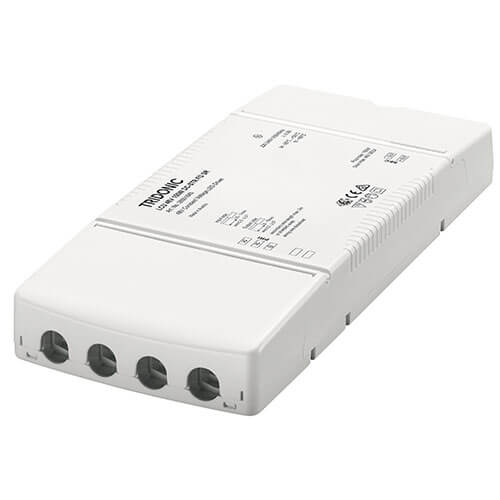

Tridonic LED Driver LCU 48V 150W DC-STR FO SR with Article Number: 28001045

Independent fixed output DC-String constant voltage LED Driver
Compatible with other DC-String components
Max. output power 150 W
Up to 93 % efficiency
Nominal life-time up to 50,000 h
For luminaires of protection class I and protection class II
Temperature protection as per EN 61347-2-13 C5e
5-year guarantee

Rated Supply Voltage	230 – 240 V
thd-at-230-v-50-hz-full-load	< 5 %
Life time	up to 50,000 h
Max. casing temperature tc	80 ¡C
Ambient temperature ta	-25 … +55 ¡C
max-cable-length-secondary	See data sheet section 3.5
Max. output voltage (U-OUT)	48V
output-voltage-tolerance	-1 … +7 %
in-rush-current-peak-duration	67.1 A / 173.2 µs
AC voltage range	198 – 264V
max-input-power	162 W
Mains Frequency	0 / 50 / 60 Hz
DC voltage range	176 Ð 280 V

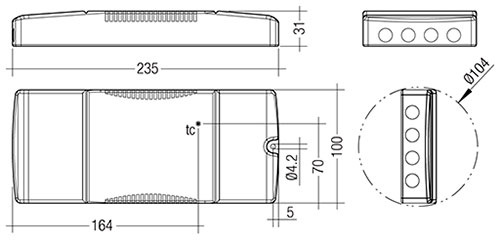

Dimensions L x W x H	235 x 100 x 31 mm
Protection Type	IP20
Output Power	150 W

Housing Properties

Casing: polycarbonate, white
Type of protection IP20

Functions

DC-String compatible
Intelligent Temperature Guard (overtemperature protection)
Short-circuit protection
Overload protection

Download

LCU 48V 150W DC-STR FO SR Datasheet
