LCA 45W 500–1400mA one4all SC PRE

ر.ق0.00

Tridonic LED Driver LCA 45W 500–1400mA one4all SC PRE With Article Number: 28000676 Dimmable built-in constant current LED Driver Can be either used built-in or independent with clip-on stra...< a href="#" id="short_description-readmore"> read more
Compare

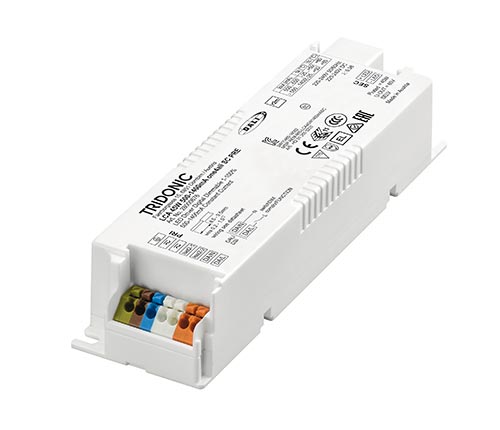

Tridonic LED Driver LCA 45W 500–1400mA one4all SC PRE With Article Number: 28000676

  • Dimmable built-in constant current LED Driver

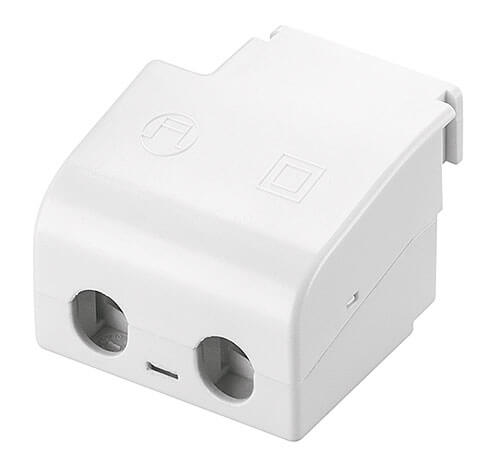

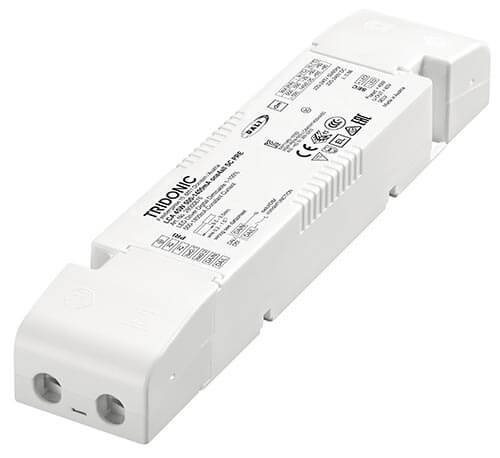

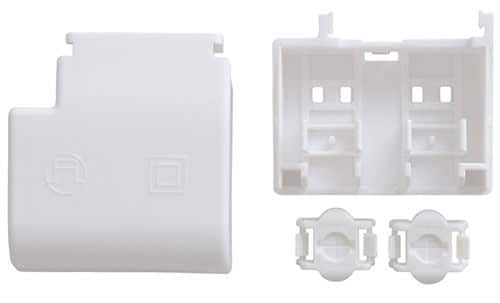

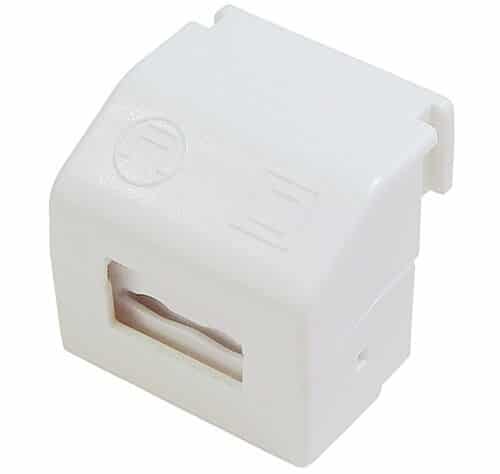

  • Can be either used built-in or independent with clip-on strain-relief (see accessory)
  • Dimming range 1 to 100 %
  • For luminaires of protection class I and protection class II
  • Output current adjustable between 500 – 1,400 mA
  • Max. output power 45 W
  • Up to 91 % efficiency
  • Power input on stand-by < 0.15 W
  • Nominal life-time up to 100,000 h
  • 5-year guarantee

Approval Marks:







Luminaire Types:







Rated Supply Voltage

230 – 240 V
AC voltage range

DC voltage range

Mains Frequency

0 / 50 / 60 Hz
Overvoltage protection

max-input-power

Typ. power input on stand-by

in-rush-current-peak-duration

thd-at-230-v-50-hz-full-load

Output Current (mA)

500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA
Output Power

Type of Protection

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20

Interfaces

  • one4all (DALI-2 DT 6, DSI, switchDIM, corridor function)
  • ready2mains (configuration and dimming via mains)
  • Terminal blocks: 45° push terminals

Functions

  • Adjustable output current (DALI, ready2mains, I-SELECT 2)
  • Constant light output function (CLO)
  • Power-up fading at AC
  • Configurable via ready2mains
  • Service monitor to log certain events
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • Flexible configuration via DALI, ready2mains and I-SELECT 2

Download

LCA 45W 500–1400mA one4all SC PRE
