Tridonic LED Driver LCA 24V one4all SC PRE Constant Voltage Dali Driver

Product description

• Dimmable 24 V constant voltage LED Driver for flexible constant voltage strips
• Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• One4all interface and ready2mains enable different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal life-time up to 50,000 h
• 5-year guarantee

Typical applications

• Cove lighting, facade accent lighting, ceiling integration

Technical details

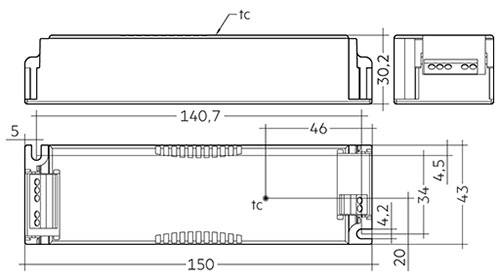

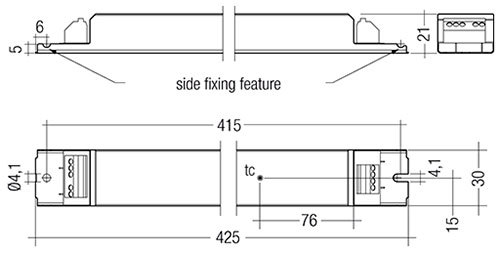

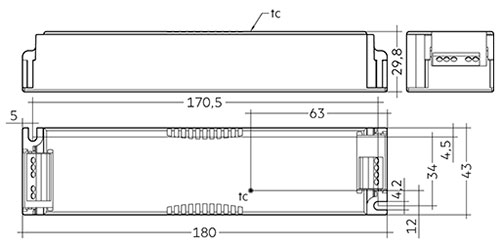

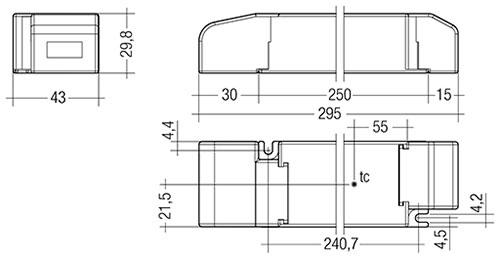

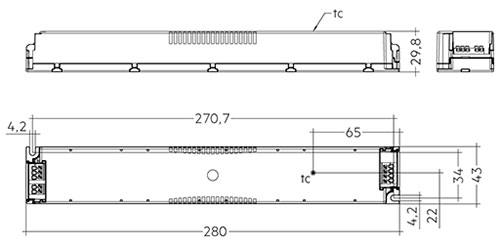

• Available in 35 W, 60 W, 100 W & 150 W

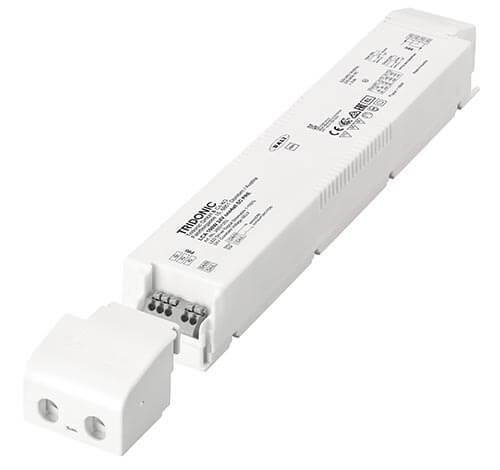

• Small design with stretched-compact strain relief
• Small cross section
• Push terminals for simple wiring
• 1 output channel (+/–)

Interfaces

• one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
• ready2mains (configuration and dimming via mains)
• Terminal blocks: 45° push terminals

System solution

• Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
• Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m

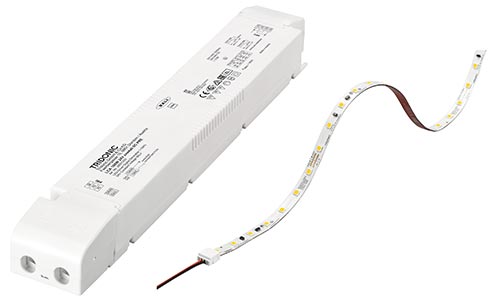

• In connection with Flex accessories wire to PCB plug
