LCA 100W 1100–2100mA one4all SR PRE

ر.ق0.00

Tridonic LED Driver LCA 100W 1100–2100mA one4all SR PRE with Article Number: 28001571 Independent dimmable LED Driver Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating...< a href="#" id="short_description-readmore"> read more
Compare

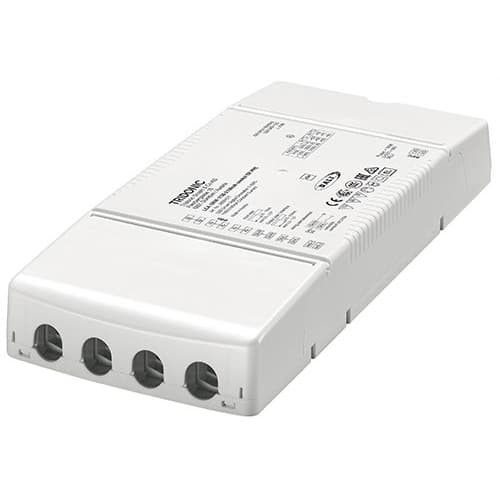

Tridonic LED Driver LCA 100W 1100–2100mA one4all SR PRE with Article Number: 28001571

  • Independent dimmable LED Driver
  • Dimmable via DALI / DALI-2
  • Dimming range 1 – 100 % (whole operating window)
  • Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
  • Max. output power 100 W
  • Up to 92 % efficiency
  • Power input on stand-by < 0.2 W
  • Nominal life-time up to 100,000 h
  • 5-year guarantee

Approval Marks:







Luminaire Types:







Rated Supply Voltage

230 – 240 V
AC voltage range

DC voltage range

Mains Frequency

0 / 50 / 60 Hz
Overvoltage protection

max-input-power

Typ. power input on stand-by

in-rush-current-peak-duration

thd-at-230-v-50-hz-full-load

Output Current (mA)

1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1400mA, 1450mA, 1500mA, 1550mA, 1600mA, 1650mA, 1700mA, 1750mA, 1800mA, 1850mA, 1900mA, 1950mA, 2000mA, 2050mA, 2100mA
Output Power

Type of Protection

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Strain relief with loop-through function

Interfaces

  • one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains (configuration and dimming via mains)
  • Terminal blocks: 0° / 45° push terminals (input / output)

Functions

  • Adjustable output current (DALI, ready2mains, I-SELECT 2)
  • Constant light output function (CLO)
  • Power-up fading at AC
  • Configurable via ready2mains
  • Service monitor to log certain events
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • For cable cross-sections up to 2.5 mm²

Benefits

  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • Flexible configuration via DALI, ready2mains and I-SELECT 2
  • No tools required for installation

Download

LCA 100W 1100–2100mA one4all SR PRE
