LC-100W-1100-2100mA-flexC-SR-EXC
LC-100W-1100-2100mA-flexC-SR-EXC

LC 100W 1100-2100mA flexC SR EXC

ر.ق0.00

Tridonic LED Driver LC 100W 1100–2100mA flexC SR EXC with Article Number: 28001573 Independent constant current LED Driver Adjustable output current between 1,100 and 2,100 mA via ready2main...< a href="#" id="short_description-readmore"> read more
Compare

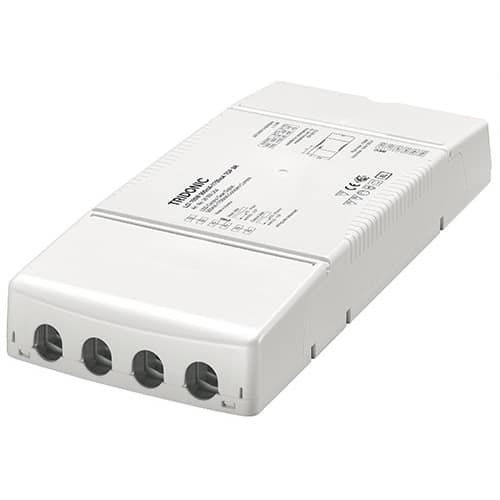

Tridonic LED Driver LC 100W 1100–2100mA flexC SR EXC with Article Number: 28001573

  • Independent constant current LED Driver
  • Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer or I-SELECT 2 plugs
  • Max. output power 100 W
  • Up to 92 % efficiency
  • Nominal life-time up to 100,000 h
  • 5-year guarantee

Approval Marks:







Luminaire Type:





Rated Supply Voltage

230 – 240 V
thd-at-230-v-50-hz-full-load

in-rush-current-peak-duration

max-input-power

AC voltage range

Overvoltage protection

Mains Frequency

0 / 50 / 60 Hz
DC voltage range

Starting time (DC mode)

Max. output voltage (U-OUT)

Output Current (mA)

1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA, 1450mA, 1500mA, 1550mA, 1600mA, 1650mA, 1700mA, 1750mA, 1800mA, 1850mA, 1900mA, 1950mA, 2000mA, 2050mA, 2100mA
Protection Type

IP20
Type of Protection

Output Power

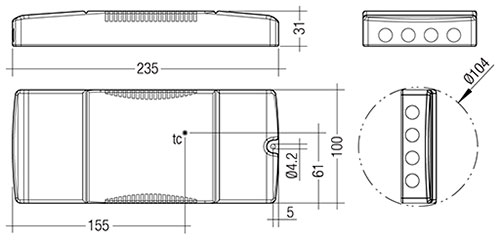

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Strain relief with loop through function

Interfaces

  • ready2mains (configuration via mains)
  • Terminal blocks: 0° / 45° push terminals (input / output)

Functions

  • Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • For cable cross-sections up to 2.5 mm²

Benefits

  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to high efficiency
  • Flexible configuration via ready2mains and I-SELECT 2
  • No tools required for installation

Typical applications

  • For applications in downlight, panel and low Bay / high Bay luminaires

Downloads

LC 100W 1100-2100mA flexC SR EXC Datasheet
