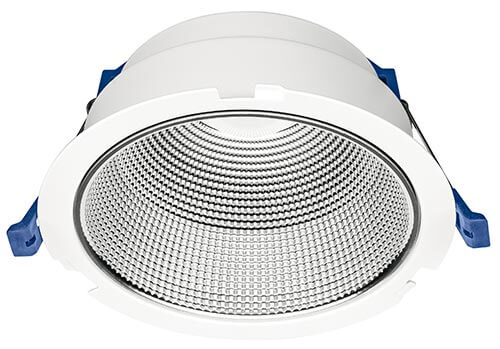

DLA G2 System

ر.ق0.00

  • LED replacement for downlight with compact fluorescent lamps
  • Complete ready2apply solution comprising module, driver, reflector and trim ring
  • Tool-free assembly, simple as push and rotate
  • Spring clip pre-assembled
  • Ripple current 5 % and UGR19 (specific model only) makes office installation possible
  • Fit for ceiling cutout 100, 150 and 200 mm
  • Typ. luminous flux category: 1,000/2,000/3,000 lm

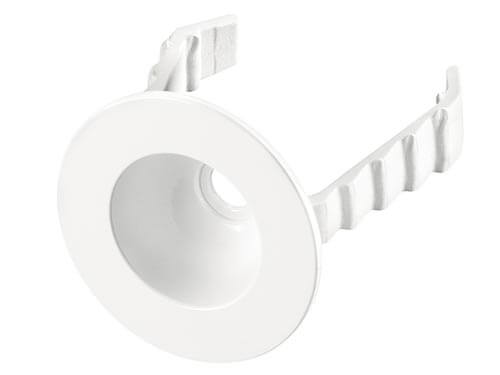

  • Approved emergency solution with EM converterLED
  • High system efficacy up to 111 lm/W

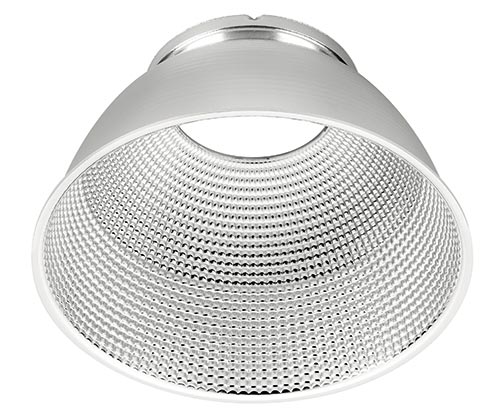

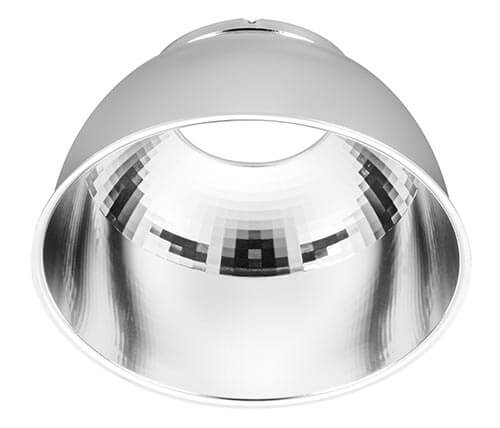

  • Optional reflector solution with 60° and 90°
  • Small colour tolerance (MacAdam 4)
  • Nominal life-time of 50,000 h (L70/B50)
  • 5-year guarantee

Approval Marks:





Luminaire Types:





Compare

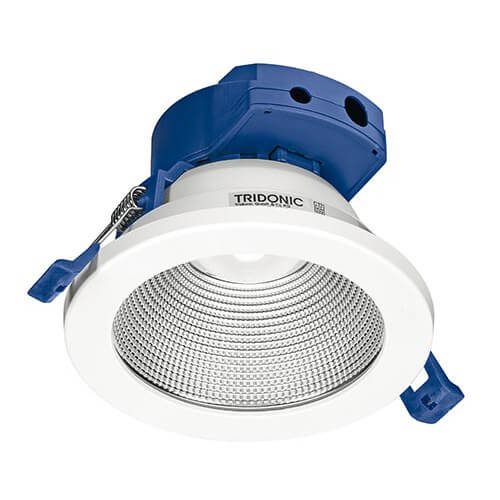

TRIDONIC DLA G2 System Down Lights with Driver

The ready2apply range features installation-ready spotlight and downlight solutions to meet professional lighting requirements, for example in shops and hotels. The DLA G2 ready2apply for downlights is offered in three different sizes and can be combined with the two optional drivers ESSENCE or ADVANCED.

Optical Properties

  • Colour temperatures 3,000 K and 4,000 K
  • Typ. luminous flux category: 1,000 / 2,000 / 3,000 lm
  • High colour rendering index CRI > 80
  • Small colour tolerance MacAdam 4 Mechanical properties

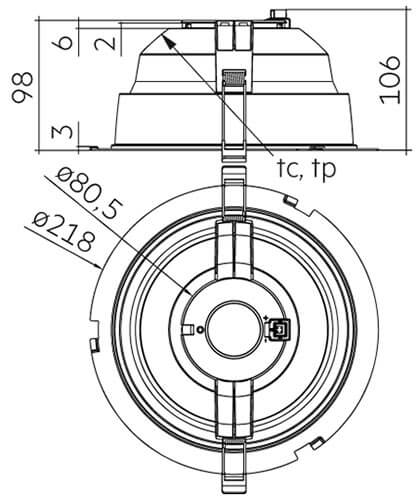

  • Fit for ceiling cutout 100, 150 and 200 mm
  • Tool-free assembly, simple as push and rotate
  • Spring clip pre-assembled

System Solution

  • High system efficacy up to 111 lm/W

Technical Data

Type Size Article number Color Temp. (K) Luminous Flux (lm) Luminous Flux
with 60°/90°(lm)		 Typ. power
consumption(W)

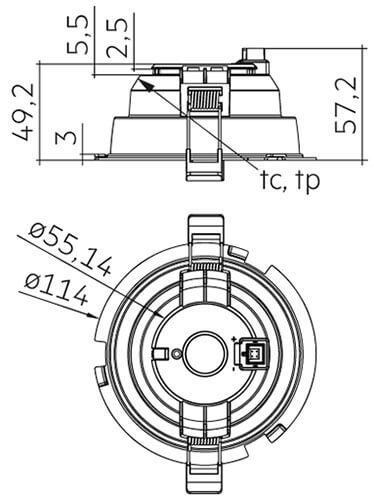

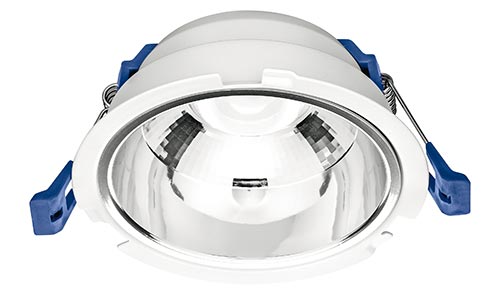

DLA G2 100mm 1000lm 830 SNC EM MOD  Ø114 x 75 28002241 3,000 980 1,060 10.2
DLA G2 100mm 1000lm 8×0 SNC EM ECG 28002236
DLA G2 100mm 1000lm 840 SNC EM MOD Ø114 x 75 28002242 4,000 1,030 1,110 10.2
DLA G2 100mm 1000lm 8×0 SNC EM ECG 28002236

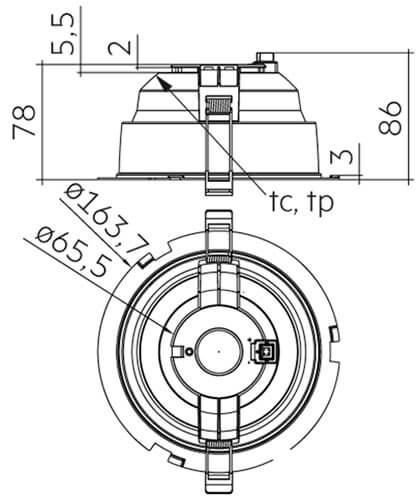

DLA G2 150mm 1000/2000lm 830 SNC EM MOD Ø164 x 85 28002243 3,000 1,000 1,110 10.1
DLA G2 150mm 1000lm 8×0 ADV EM ECG 28002238
DLA G2 150mm 1000/2000lm 830 SNC EM MOD Ø164 x 85 28002243 3000 1,970 2,130 20.2
DLA G2 150mm 2000lm 8×0 SNC EM ECG 28002238
DLA G2 150mm 1000/2000lm 840 SNC EM MOD Ø164 x 85 28002244 4,000 1,020 1,120 10.1
DLA G2 150mm 1000lm 8×0 ADV EM ECG 28002237
DLA G2 150mm 1000/2000lm 840 SNC EM MOD Ø164 x 85 28002244 4,000 2,050 2,210 20.2
DLA G2 150mm 2000lm 8×0 SNC EM ECG 28002238

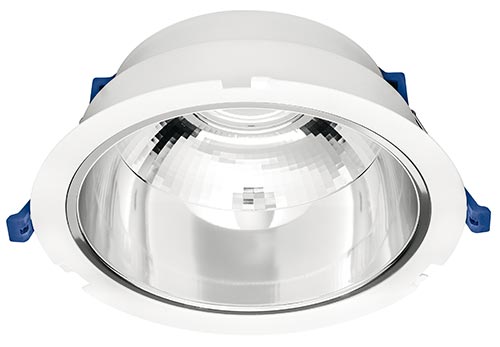

DLA G2 200mm 2000/3000lm 830 SNC EM MOD  Ø114 x 72 28002245 3,000 2,080 2,200 20.4
DLA G2 200mm 2000lm 8×0 ADV EM ECG 28002239
DLA G2 200mm 2000/3000lm 830 SNC EM MOD Ø114 x 72 28002245 3,000 2,900 3,070 29.8
DLA G2 200mm 3000lm 8×0 SNC EM ECG 28002240
DLA G2 200mm 2000/3000lm 840 SNC EM MOD  Ø114 x 72 28002270 4,000 2,120 2,250 20.4
DLA G2 200mm 2000lm 8×0 ADV EM ECG 28002239
DLA G2 200mm 2000/3000lm 840 SNC EM MOD Ø114 x 72 28002270 4,000 3,000 3,180 29.8
DLA G2 200mm 3000lm 8×0 SNC EM ECG 28002240

Download

Tridonic DLA G2 SNC Datasheet
