DAISY-LEDil-LLE-Advanced
DAISY-LEDil-LLE-Advanced

DAISY LEDil LLE Advanced 24mm LV DAISY ADV1 (LEDiL)

ر.ق0.00

DAISY LEDil LLE Advanced Module 24mm LV with Dimension 24x140mm, 24x280mm & 24x560mm Product description Ideal for linear luminaires 4 terminals for parallel wiring SELV module – the...< a href="#" id="short_description-readmore"> read more
Compare

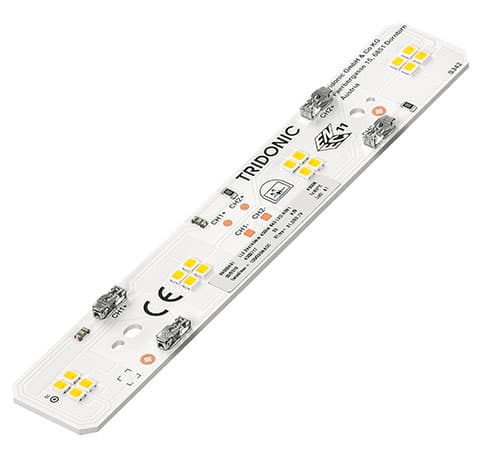

DAISY LEDil LLE Advanced Module 24mm LV with Dimension 24x140mm, 24x280mm & 24x560mm

Product description

  • Ideal for linear luminaires
  • 4 terminals for parallel wiring
  • SELV module – the single module has a forward voltage < 60 V
  • Push terminals for quick and simple wiring of LED module to LED module

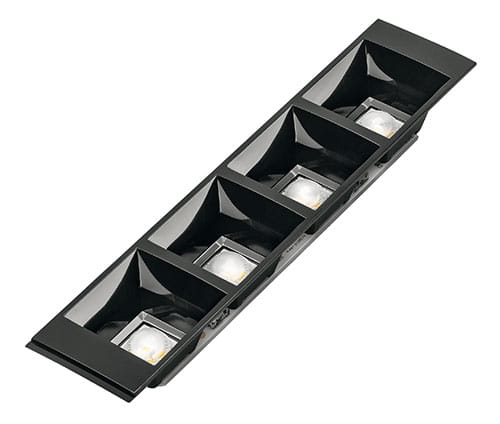

  • Design for LEDiL DAISY 4×1, 7×1 & 28×1 portfolio
  • Long life-time up to 72,000 hours
  • 5-year guarantee

Optical properties

  • Colour temperatures 3,000 and 4,000 K
  • Efficacy of the module up to 200 lm/W
  • Typ. luminous flux 400 lm, 750lm & 1500lm
  • High colour rendering index CRI > 80 & CRI > 90
  • High colour consistency (MacAdam 3)
  • Small luminous flux tolerances

Mechanical properties

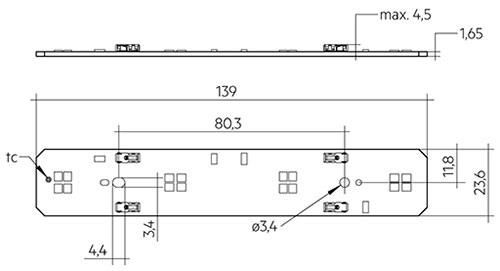

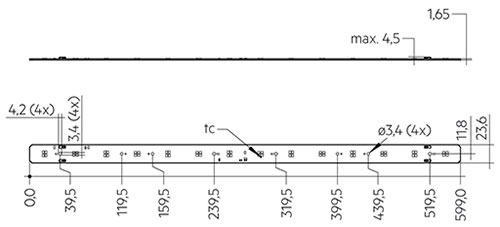

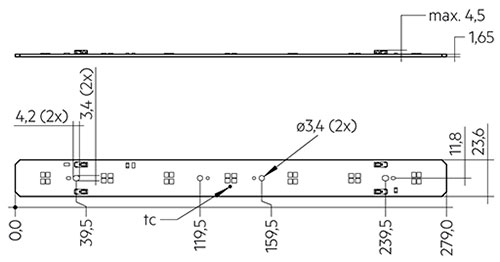

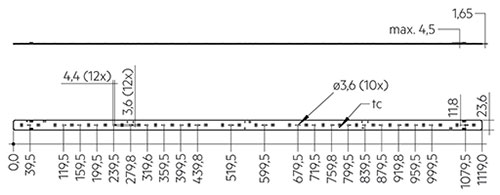

  • Module dimension 24 x 140 mm, 24 x 280 mm and 24 x 560 mm
  • Simple installation of lens and module with M3 screws

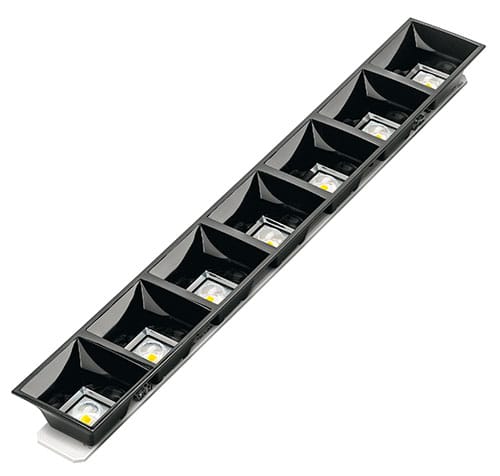

System solution

  • LED system solution with outstanding system efficacy up to 184 lm/W, in combination with linear SELV LED Driver from Tridonic

Specification

Beam characteristic 120°
Ambient temperature range -40 … +65 °C
tp rated 65 °C
tc 80 °C
Irated for 400 lm 100 mA
Irated for 750 lm 100 mA
Irated for 1,500 lm 200 mA
Imax for 400 lm 350 mA
Imax for 750 lm 350 mA
Imax for 1,500 lm 700 mA
Max. permissible LF current ripple for 400 lm 440 mA
Max. permissible LF current ripple for 750 lm 440 mA
Max. permissible LF current ripple for 1,500 lm 880 mA
Max. permissible peak current for 750 lm 600 mA / max. 10 ms
Max. permissible peak current for 1,500 lm 1,200 mA / max. 10 ms
Max. working voltage for insulation SELV 60 V
Insulation test voltage 0.5 kV
CTI of the printed circuit board ≥ 600
ESD classification Severity level 4
Risk group (IEC 62471) RG1
Classification acc. to IEC 62031 Built-in
Type of protection IP00
Life-time up to 72,000 h
Gurantee 5 Year(s)

Technical Data

Type Article number Colour temp (K)
LLE 24x140mm 400lm 830 LVD ADV1 89603460 3,000 K
LLE 24x140mm 400lm 840 LVD ADV1 89603461 4,000 K
LLE 24x140mm 400lm 930 LVD ADV1 28003486 3,000 K
LLE 24x140mm 400lm 940 LVD ADV1 28003487 4,000 K
LLE 24x280mm 750lm 830 LVD ADV1 89603462 3,000 K
LLE 24x280mm 750lm 840 LVD ADV1 89603463 4,000 K
LLE 24x560mm 1500lm 830 LVD ADV1 89603464 3,000 K
LLE 24x560mm 1500lm 840 LVD ADV1 89603465 4,000 K
LLE 24x280mm 750lm 930 LVD ADV1 28003488 3,000 K
LLE 24x280mm 750lm 940 LVD ADV1 28003489 4,000 K
LLE 24x560mm 1500lm 930 LVD ADV1 28003490 3,000 K
LLE 24x560mm 1500lm 940 LVD ADV1 28003491 4,000 K

Download

Module LLE 24x140mm 400lm LV DAISY ADV1 (LEDiL) Datasheet

Module LLE 24x140mm 400lm CRI90 LV DAISY ADV1 (LEDiL) Datasheet

Module LLE 24×280-560mm 750lm LV DAISY ADV1 (LEDiL) Datasheet

Module LLE 24×280-560mm 750lm CRI90 LV DAISY ADV1 (LEDiL) Datasheet
