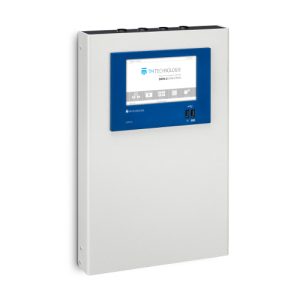

TM Technologie Self-Contained Addressable Central Monitoring System:
Monitoring of a configured system up to 4096 fittings, ideal for medium-sized and large investments. All parameters of fittings, the addresses of which are displayed in the control panel, are downloaded by the panel in a continuous manner. The control unit has a built-in rechargeable battery that allows monitoring the fittings even during a loss of primary power.
In addition, the Central Monitoring System has the Possibility to download reports and logs stored in the device’s memory. A software update via USB port is possible. Communication between the panel and fittings is carried out by means of built-in C-Bridge 2 signal splitter through the two-wire TM Bus communication which doesn’t require polarization maintenance.
Furthermore, password protection for different levels of rights and integration with smart building systems.
DATA 2
ر.ق0.00DIVERSIFIED MONITORING OF EMERGENCY LIGHTING
The system monitors the operation of Evacuation lighting fittings installed in large public buildings. It determines the condition of fittings by performing function and autonomy tests, which are configured by the user. The system is highly intuitive to use thanks to its touch-based navigation and user-friendly interface.
DATA-S Plus
ر.ق0.00
Main parameters of the system |
|
| Maximum number of emergency fittings in the system | 3024 |
| Maximum number of communication channels | 12 |
| Maximum number of emergency fittings/channel | 63 |
| Maximum number of emergency fittings/channel (using signal repeater) | 252 |
| Maximum length of the communication cable | 1000 m |
