Tridonic Module LLE Advanced 16mm 650lm/1250lm HV ADV5
$0.00
Module LLE 16mm 650lm/1250lm HV ADV5 Linear LED Module with Dimensions 16x70 mm, 16x140mm, 16x280mm and 16x560mm
Product description
Ideal for compact linear luminaires designs
Homogenous ill...< a href="#" id="short_description-readmore"> read more
HURRY! ONLY LEFT IN STOCK.
Module LLE 16mm 650lm/1250lm HV ADV5 Linear LED Module with Dimensions 16×70 mm, 16x140mm, 16x280mm and 16x560mm
Product description
- Ideal for compact linear luminaires designs
- Homogenous illumination thanks to small package distance
- 2 terminals for serial wiring
- Perfectly uniform light, even if several LED modules are used together in a line
- Push terminals for quick and simple wiring of LED module to LED module
- Long life-time up to 72,000 hours
- 5-year guarantee
Optical properties
- Colour temperatures 2,700, 3,000, 4,000 and 6,500 K
- Typ. luminous flux 325, 650 and 1,300 lm
- Efficacy of the module up to 203 lm/W
- High colour rendering index CRI > 80
- High colour consistency (MacAdam 3)
- Small luminous flux tolerances
Mechanical properties
- Module dimension 16 x 70mm, 16 x 140 mm, 16 x 280 mm and 16 x 560 mm
- Simple installation via clips or screws
System solution
- LED system solution with outstanding system efficacy up to 180 lm/W, consisting of linear LED modules and dimmable LED Driver LCA 50W 100–400mA lp PRE
Specification
| Beam characteristic | 120° |
| Ambient temperature range | -40 … +65 °C |
| tp rated | 50 °C |
| tc | 85 °C |
| Irated | 300 mA |
| Imax | 540 mA |
| Max. permissible LF current ripple | 595 mA |
| Max. permissible peak current | 900 mA / max. 8 ms |
| Max. working voltage for insulation | 400 V |
| Insulation test voltage | 1.8 kV |
| CTI of the printed circuit board | ≥ 600 |
| ESD classification | Severity level 4 |
| Risk group (IEC 62471) | RG0 |
| Classification acc. to IEC 62031 | Built-in |
| Type of protection | IP00 |
| Life-time | up to 72,000 h |
Technical Data
| Type | Article number | Colour temp (K) |
| Module LLE 16×140-560mm 650lm HV ADV5 | ||
| LLE 16x140mm 325lm 827 HV ADV5 | 89603385 | 2,700 K |
| LLE 16x140mm 325lm 830 HV ADV5 | 89603386 | 3,000 K |
| LLE 16x140mm 325lm 840 HV ADV5 | 89603387 | 4,000 K |
| LLE 16x280mm 650lm 827 HV ADV5 | 89603390 | 2,700 K |
| LLE 16x280mm 650lm 830 HV ADV5 | 89603391 | 3,000 K |
| LLE 16x280mm 650lm 840 HV ADV5 | 89603392 | 4,000 K |
| LLE 16x280mm 650lm 865 HV ADV5 | 89603394 | 6,500 K |

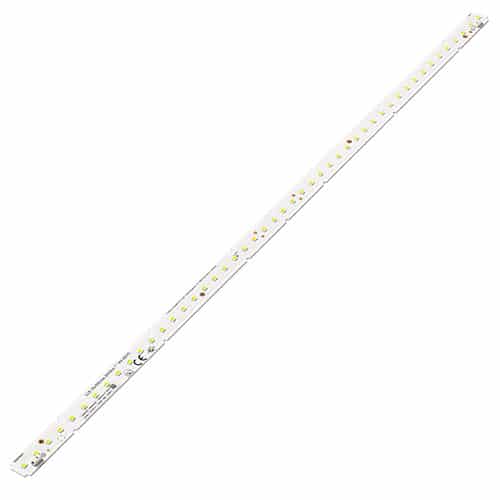

| LLE 16x560mm 1300lm 827 HV ADV5 | 89603395 | 2,700 K |
| LLE 16x560mm 1300lm 830 HV ADV5 | 89603396 | 3,000 K |
| LLE 16x560mm 1300lm 840 HV ADV5 | 89603397 | 4,000 K |
| Module LLE 16×140-280mm 650lm CRI90 HV ADV5 | ||
| LLE 16x140mm 325lm 927 HV ADV5 | 28003309 | 2,700 K |
| LLE 16x140mm 325lm 930 HV ADV5 | 28003312 | 3,000 K |
| LLE 16x140mm 325lm 940 HV ADV5 | 28003314 | 4,000 K |
| LLE 16x280mm 650lm 927 HV ADV5 | 28003315 | 2,700 K |
| Module LLE 16×70-560mm 1250lm HV ADV5 | ||
| LLE 16x70mm 325lm 840 HV ADV5 QTY4 | 89603401 | 4,000 K |
| LLE 16x140mm 650lm 827 HV ADV5 | 89603402 | 2,700 K |
| LLE 16x140mm 650lm 830 HV ADV5 | 89603403 | 3,000 K |
| LLE 16x140mm 650lm 840 HV ADV5 | 89603404 | 4,000 K |
| LLE 16x280mm 1250lm 827 HV ADV5 | 89603407 | 2,700 K |
| LLE 16x280mm 1250lm 830 HV ADV5 | 89603408 | 3,000 K |
| LLE 16x280mm 1250lm 840 HV ADV5 | 89603409 | 4,000 K |
| LLE 16x560mm 2400lm 827 HV ADV5 | 89603412 | 2,700 K |
| LLE 16x560mm 2400lm 830 HV ADV5 | 89603413 | 3,000 K |
| LLE 16x560mm 2400lm 840 HV ADV5 | 89603414 | 4,000 K |
Download
Module LLE 16×140-560mm 650lm HV ADV5 Datasheet
Module LLE 16×140-280mm 650lm CRI90 HV ADV5Â Datasheet
Module LLE 16×70-560mm 1250lm HV ADV5Â Datasheet
