TM-CB A
$0.00

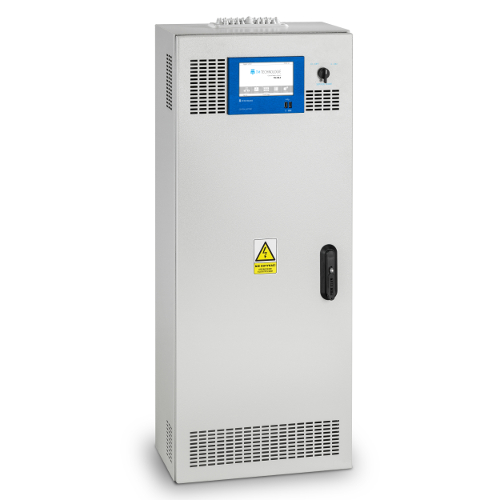

Allow to connect tube, halogen or led fittings, depending on applied modules. The central battery operates up to 24 output circuits, 64 substations. A maximum number of circuits is 1536 which allows for connecting and monitoring of up to 30 720 fittings.
HURRY! ONLY LEFT IN STOCK.
System features:
- – conformity with standards EN 50171, EN 50172 and DIN VDE 0108
- – system constructed with modules
- – daily and annual tests controlled by the microprocessor
- – the user-programmed operation mode of each circuit
- – the mixed operation mode of fittings on one circuit
- – up to 20 fittings on one circuit
- – monitoring of circuits and fittings
- – possibility of connecting substation
- – failed tests information storage
- – touch screen control with an intuitive and simple interface
- – easy, intuitive configuration
- – CC/CV rechargeable battery charging – prolonging their life
- – monitoring of cables isolation condition
- – possibility of connecting up to 24 circuits
- – unauthorized access protection
- – possibility of wireless change of module address
- – embedded www server
- – Ethernet network connection possibility
- – option to cooperate with building management systems using Modbus TCP
HURRY! ONLY LEFT IN STOCK.
| Brand | TM Technologie |
|---|---|
| Power supply | 230 V AC / 50 Hz |
| Nominal voltage | 216 V DC |
| Rechargeable battery | Lead-acid maintenance-free rechargeable batteries; lifespan up to 12 years |
| Output circuits | Up to 24 exit circuits with user-programmed working mode |
| Charging | CC / CV |
| Mode | Free programming of individual circuits: networked, maintained operation, non-maintained |
| Maximum net load capacity | 2,5 A |
| Power | 540 VA |
| Number of substation | < 64 |
| Number of circuits supported | < 1536 |
| Number of fittings connected | < 30 720 |
| Isolation class | I |
| Protection type | IP20 |
Download
TM CB-A DatasheetRELATED PRODUCTS
