Siemens PICV DN80 – VPF44.80F45
VPF44.80F45 Pressure Independent Combi Valve, flanged, PN16, DN65, 5.3…45 m3/h. For closed hydraulic circuits. s. Compatible electromotoric actuators SAX..P.., SAV..P.. and SQV..P.. . For cooling water, hot water and for water with anti-freeze.
Suitable Actuators: SAX61P03.
HURRY! ONLY LEFT IN STOCK.
Siemens PICV DN80 – VPF44.80F45
VPF44.80F45 Pressure Independent Combi Valve, flanged, PN16, DN65, 5.3…45 m3/h. For closed hydraulic circuits. s. Compatible electromotoric actuators SAX..P.., SAV..P.. and SQV..P.. . For cooling water, hot water and for water with anti-freeze. Suitable Actuators: SAX61P03.
LCU 60W 24V TOP SR
$0.00Tridonic LED Driver LCU 60W 24V IP20 EXC with Article Number: 28000412 Constant voltage LED Driver Universal input voltage range Constant output voltage Push terminals for simple wiring Nominal life-time up to 50,000 h (at ta 45 °C with a failure rate ≤ 0.2 % per 1,000 h) 5-year guarantee Suitable for emergency escape lighting...

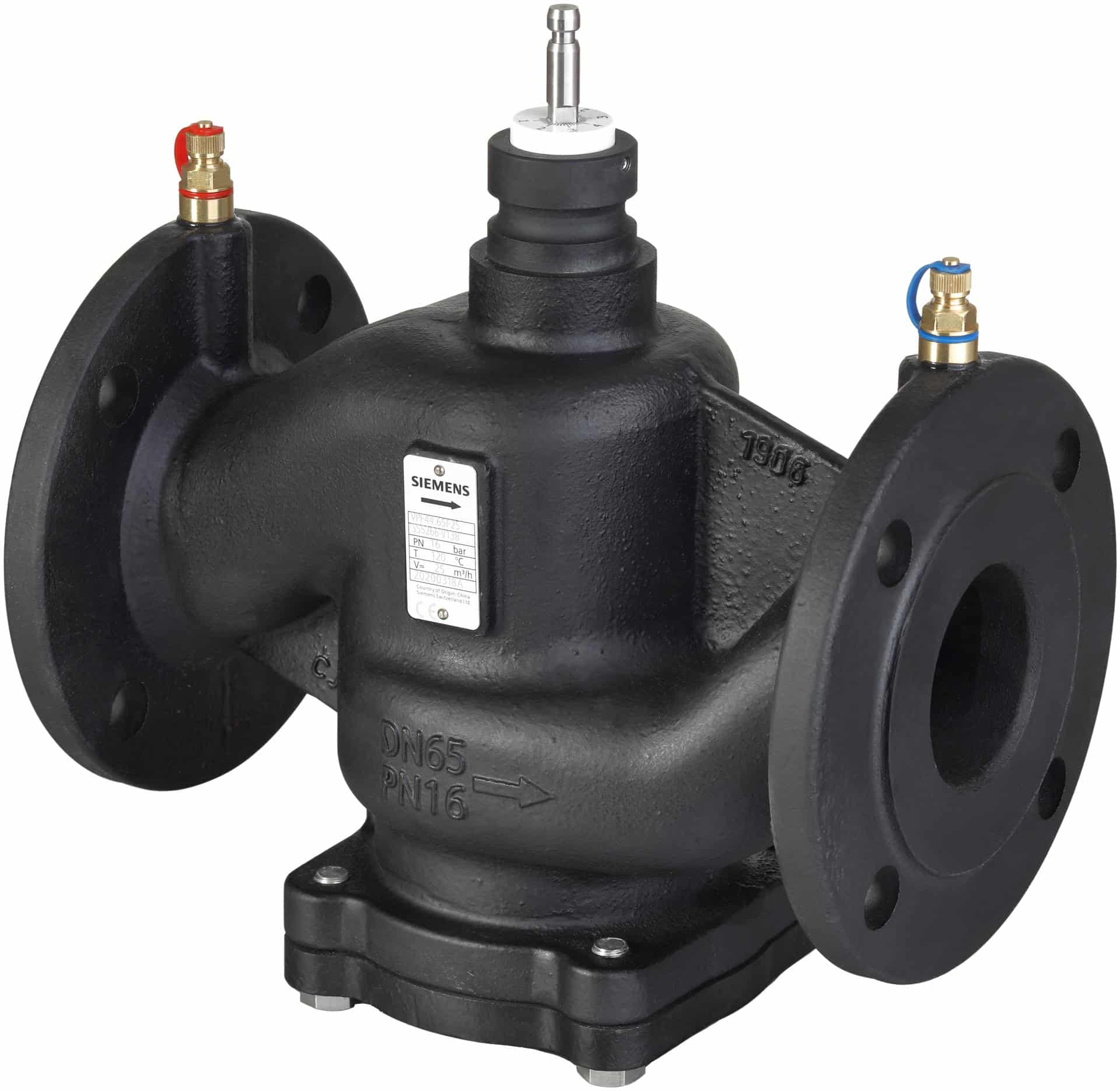

Siemens PICV DN80 Pressure Independent Combi Valve VPF44.80F45, flanged type end connection, nominal pressure PN16, volume flow rate of 5.3- 45 m3/h.
Distinguished features of Siemens flanged type PICV’s as follows:
- Maximum Volumetric Flow Presetting
- Integrated Differential Pressure Controller
- Pressure Measuring Points
- Actuators for every control requirement
| Brand | Siemens |
|---|---|
| Size | DN80 |
| Flow rate | 5.3 m3/h – 34 m3/h |
| Test points | Yes |
| End Connections | Flanged End Connections To ISO 7005-2 |
| PN class | PN 16 as per ISO 7628 / EN 1333 |
| Maximum differential pressure | 1600kPa (16 bar) as per ISO 7628 / EN 1333 |
| Nominal stroke required | 20mm |
| Valve Body Material | Gray cast iron GJL-250 |
| Range ability | 1:100 |
| Permissible media | Chilled Water, Water with antifreeze |
| Medium temperature | 1…120 °C |
| Leakage rate | Class IV |
| Suitable Actuators | SAX61P03 |
