ONTEC S IP65 “F” – Narrow Beam Emergency Light

$0.00

F Series With Flare Mini Optic for focused illumination – high ceilings application

TM Technologie ONTEC S “F” IP65 Weatherproof Surface/Recessed LED Emergency light fitting that has Qatar Civil Defense (QCD) approval. Fittings supplied in various luminous flux to comply with NFPA101 and QCD requirements (10.8lux). For anti-panic lighting applications in Auto Test, Manual Test, DALI, Central Monitoring, and Central Battery modes.

ONTEC S “F” Series, for escape route emergency lighting function supplied with Flare-Mini lens, primarily designed for escape route emergency lighting with narrow beam illumination. Ideal application for challenging ceiling heights and staircase application in compliance with NFPA 101; achieving 108 lux (10 ft-candle).

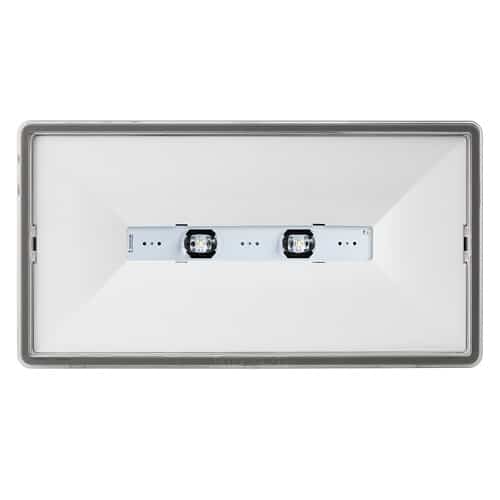

ONTEC S "F" IP65 Emergency Light

HURRY! ONLY LEFT IN STOCK.

Categories: Emergency & Exit Lights, TM Technologie LED Emergency Lights

Brand	TM Technologie
Model	F1, F1 302, F2 05, F2 305
Available versions	AT – autotest, CB, CBA, DALI, DATA2, ST – standard version
Mode	Maintained, Maintained/Non-Maintained, non-maintained
Light source	1 LED, 2 LED
Luminous flux	226 lm, 290 lm, 439 lm
Warranty	24 Months, 36 Months, 60 Months
Application	escape route lighting
Power supply	210÷250 V AC 50÷60 Hz
Power supply cb	210÷250 V AC 50÷60 Hz; 184÷254 V DC
Protection type	IP65
Isolation class	II
Material	cover: PC transparent, housing: PC/ABS
Housing colour	RAL 7035, RAL 9003, RAL 9004, special colour
Autonomy	3h
Temperature range	ta -15°C ÷ +40°C (COLD), ta -15°C ÷ +55°C (CB), ta +10°C ÷ +40°C
Glow wire test	850°C
Standards	PN-EN 1838, PN-EN 55015, PN-EN 60598-1, PN-EN 60598-2-22, PN-EN 61000-3-2, PN-EN 61347-1, PN-EN 61347-2-13, PN-EN 61347-2-7, PN-EN 62031, PN-EN 62471

Assembly

Models

Type	Model	Light source	Time	Mode	Power	Battery	Luminous flux	Version
INDIVIDUAL SYSTEMS
ONTEC S	F1 302	1 LED	3 h	M / NM	6.5 W	LiFePO4/C 6.4V 1.5Ah	226 lm	ST, AT, DALI, DATA 2
ONTEC S	F2 305	2 LED	3 h	M / NM	6.8 W	LiFePO4/C 6.4V 3.0Ah	439 lm	ST, DALI, DATA 2
CENTRAL BATTERY
ONTEC S	F1 CB	1 LED	–	–	4.5 W	–	290 lm	CB
ONTEC S	F1 CBA	1 LED	–	–	5.5 W	–	290 lm	CBA
ONTEC S	F2 05 CB	2 LED	–	–	6.5 W	–	439 lm	CB
ONTEC S	F2 05 CBA	2 LED	–	–	7.0 W	–	439 lm	CBA
LEGEND
Version	Description
ST	Button Test
AT	Auto-Test / Self-Test
DATA2	With addressable module for self-contained system DATA 2
DALI	For DALI Emergency Monitoring
CB	for Central Battery – without addressable module
CBA	for Central Battery – with addressable module
