ONTEC R “M” Series – Anti Panic
$0.00
- M Series Without Optic for Distributed Illumination From the Ceiling.
- Robust and elegant.
HURRY! ONLY LEFT IN STOCK.

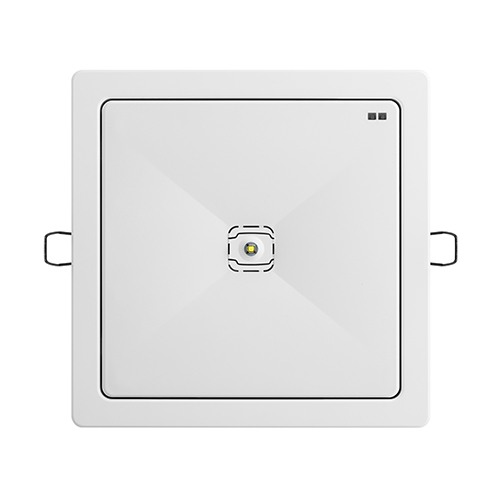

TM Technologie ONTEC R Series, LED Recessed/Surface mounted Emergency Light, QCD (Qatar Civil Defense Approved)
- High Luminance fittings in compliance with NFPA101 and QCD requirements (10.8lux) for anti-panic lighting
- Application in Auto Test, Manual Test, Central Monitoring, and Central Battery modes.
- Maintained (M) and Non-Maintained (NM) versions
- Easy installation with modular electronics design
- Extended life-time when supplied with LiFePO4 batteries
| Brand | TM Technologie |
|---|---|
| Model | M1 01, M1 301, M1U 301, M2 02, M2 302, M5 05, M5 305 |
| Available versions | AT – autotest, CB1, CB3, DATA-DATA2 – diversified system, ST – standard version |
| Mode | Maintained, Maintained/Non-Maintained, non-maintained |
| Light source | 1 LED, 2 LED |
| Luminous flux | 143 lm, 261 lm, 503 lm |
| Warranty | 24 Months |
| Application | Antipanic lighting |
| Power supply | 210÷250 V AC 50÷60 Hz |
| Power supply cb | 210÷250 V AC 50÷60 Hz; 186÷254 V DC |
| Protection type | IP20 |
| Isolation class | II |
| Material | housing: PC/ABS |
| Housing colour | RAL 7035, RAL 9003, RAL 9004, special colour |
| Autonomy | 3h |
| Temperature range | ta -10°C ÷ +40°C (CB2, CB3, CB4), ta -15°C ÷ +55°C (CB1), ta +10°C ÷ +35°C |
| Glow wire test | 850°C |
| Standards | PN-EN 1838, PN-EN 55015, PN-EN 60598-1, PN-EN 60598-2-22, PN-EN 61000-3-2, PN-EN 61347-1, PN-EN 61347-2-13, PN-EN 61347-2-7, PN-EN 62031, PN-EN 62471 |
Assembly
Models
| Type | Model | Light source | Time | Mode | Active Power | Battery | Luminous flux | Version | |
| INDIVIDUAL SYSTEMS | |||||||||
| ONTEC R | M1U 301 | 1 LED | 3 h | NM | 1.7 W | LiFePO4/C 3.2V 1.5Ah | 150 lm | ST | |
| ONTEC R | M2 302 | 1 LED | 3 h | M / NM | 7.2 W | LifePO4/C 6,4V 1,5Ah | 274 lm | ST, AT, DATA, DATA 2 | |
| ONTEC R | M5 305 | 2 LED | 3 h | M / NM | 6.7 W | LifePO4/C 6,4V 3,0Ah | 528 lm | ST, AT, DATA, DATA 2 | |
| CENTRAL SYSTEMS | |||||||||
| ONTEC R | M2 02 C | 1 LED | – | – | 4.6 W | – | 274 lm | CB | |
| ONTEC R | M5 05 C | 2 LED | – | – | 7.7 W | – | 528 lm | CB | |
ONTEC R Datasheet
ONTEC R Installation InstructionRELATED PRODUCTS
